NOAH
LAP STEEL


project made by NOAH GUITARS
in convergency with Max Pontrelli
and master builder Marco Pancaldi

NOAH Lap Steel guitar is conceived as a natural completion of NOAH’s aluminum hardshell musical instruments offer. The project has been in progress for a few years, necessary to develop a both original and reassuring creation. Completely milled out from a unique piece of aluminum alloy, Lap Steel project fully embraces NOAH vision: traditional shapes joined to innovative challenges offer to musicians to augment solution ranges, and new inspiration opportunities.
With this model, an interesting interpretation is offered to the musician: the hollowed body and neck turn in to reactive components of the vibrant instrument. The magnetic amplification system is characterized by the pick up selection, which have a different behavior then being on a wood guitar body.
The guitar is “alive”, but still extremely under control. The wise and reasoned choices about the electronic parts allows to obtain a great variety of tonal nuances with just a few selection options. This ease of application offers the musician considerable expression freedom. The 25″ length of the diapason scale allows the tuning on lower and deeper registers than traditional ones. Strings thickness has been chosen to retain the best known registers as well.
Lastly, through the use of CNC technology, it was possible to realize some parts usually delegated to existing models on the market, as bridge and nut. NOAH GUITARS has been able to look for its own original solutions, as a true single producer of its kind.

NOAH
LAP STEEL


project made by NOAH GUITARS
in convergency with Max Pontrelli
and master builder Marco Pancaldi

NOAH Lap Steel guitar is conceived as a natural completion of NOAH’s aluminum hardshell musical instruments offer. The project has been in progress for a few years, necessary to develop a both original and reassuring creation. Completely milled out from a unique piece of aluminum alloy, Lap Steel project fully embraces NOAH vision: traditional shapes joined to innovative challenges offer to musicians to augment solution ranges, and new inspiration opportunities.
With this model, an interesting interpretation is offered to the musician: the hollowed body and neck turn in to reactive components of the vibrant instrument. The magnetic amplification system is characterized by the pick up selection, which have a different behavior then being on a wood guitar body.
The guitar is “alive”, but still extremely under control. The wise and reasoned choices about the electronic parts allows to obtain a great variety of tonal nuances with just a few selection options. This ease of application offers the musician considerable expression freedom. The 25″ length of the diapason scale allows the tuning on lower and deeper registers than traditional ones. Strings thickness has been chosen to retain the best known registers as well.
Lastly, through the use of CNC technology, it was possible to realize some parts usually delegated to existing models on the market, as bridge and nut. NOAH GUITARS has been able to look for its own original solutions, as a true single producer of its kind.
Technical Specifications

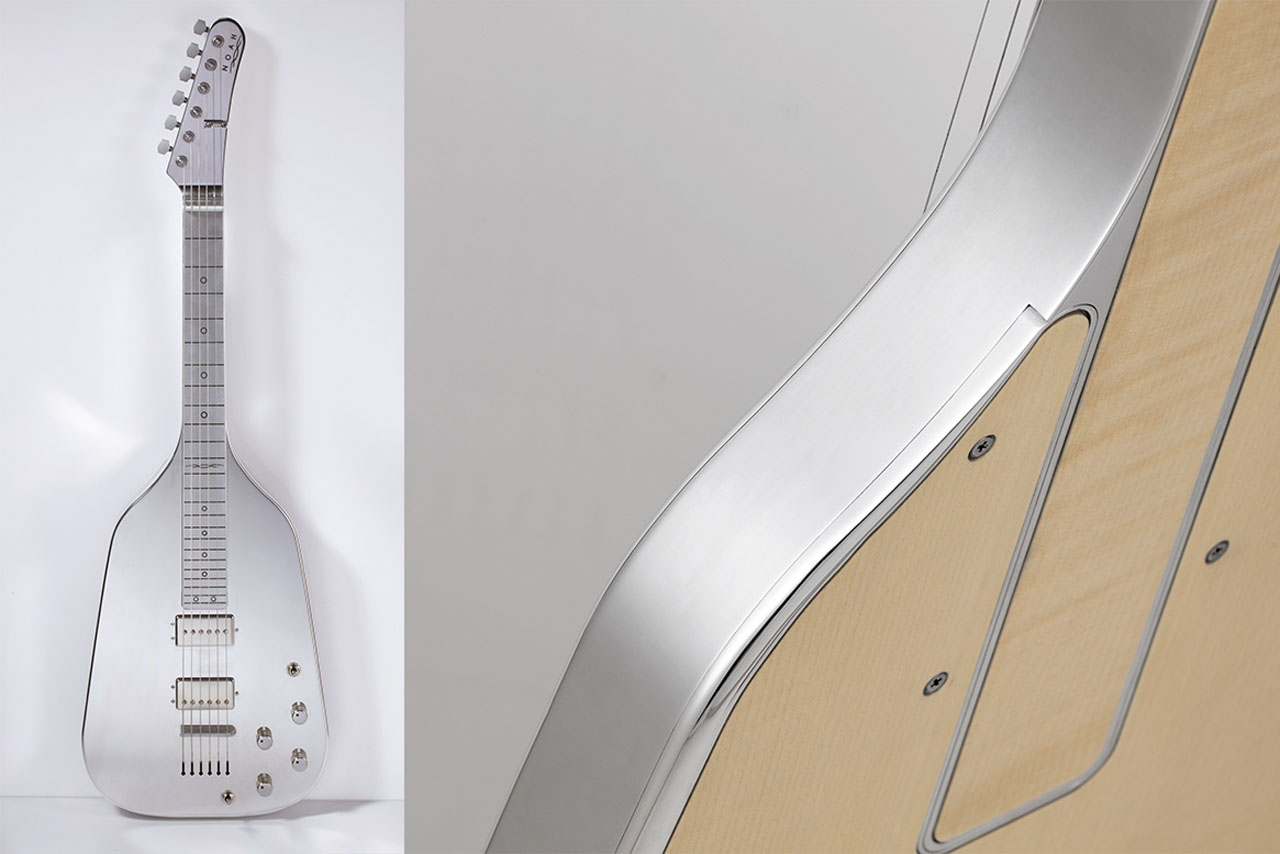

Body
Aluminium - Hollow – Depth 40 mm
Neck
Aluminium - Hollow – Depth 40 mm

Finish
NOAH Magic Mirror
Fretboard
Aluminium – satin finish – Flat radius

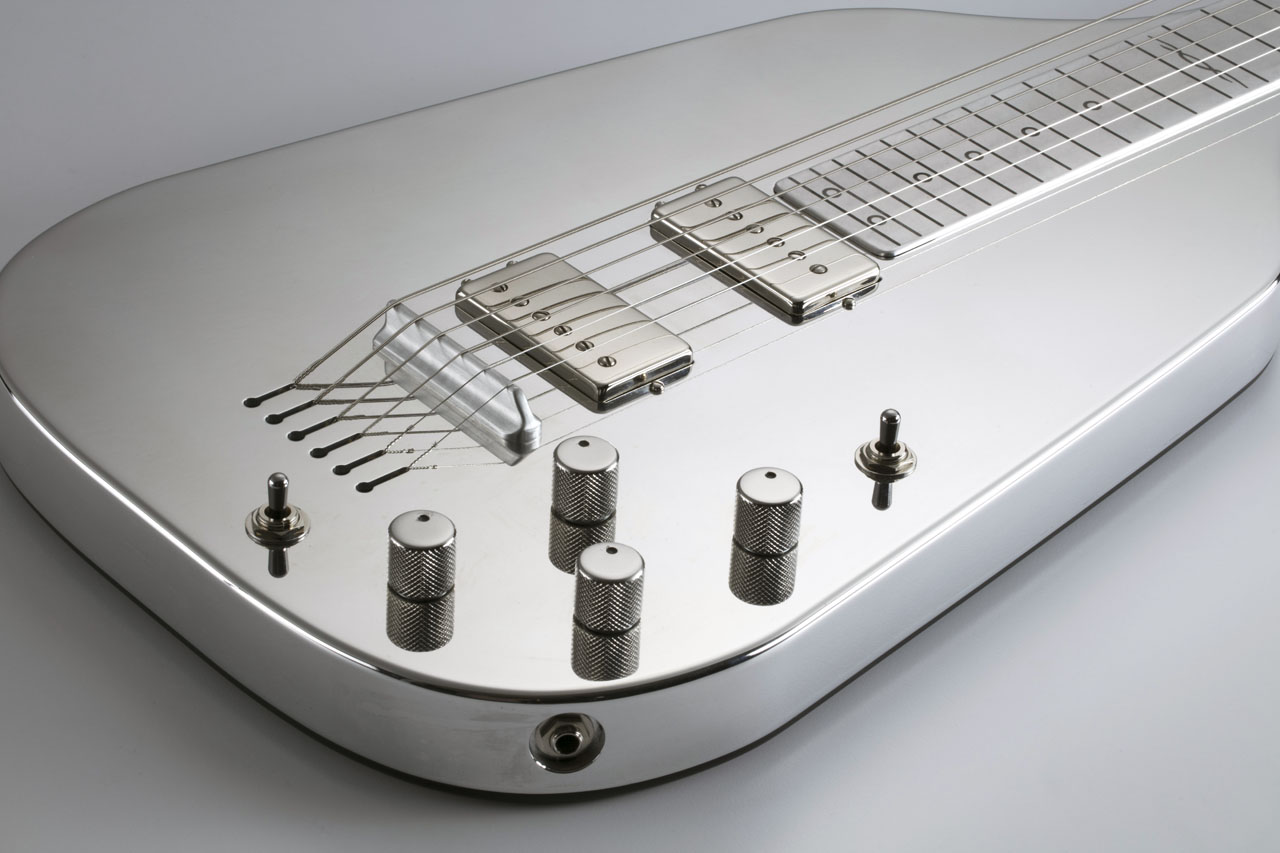

Pickups
Seymour Duncan Phat Cat - P90
humbucker size - Nickel Cover Neck - 7,98K
Di Marzio DP223 F-Spaced humbucker
Alnico 5, PAF 36th Anniversary - Nickel Cover
Bridge – 8,6K

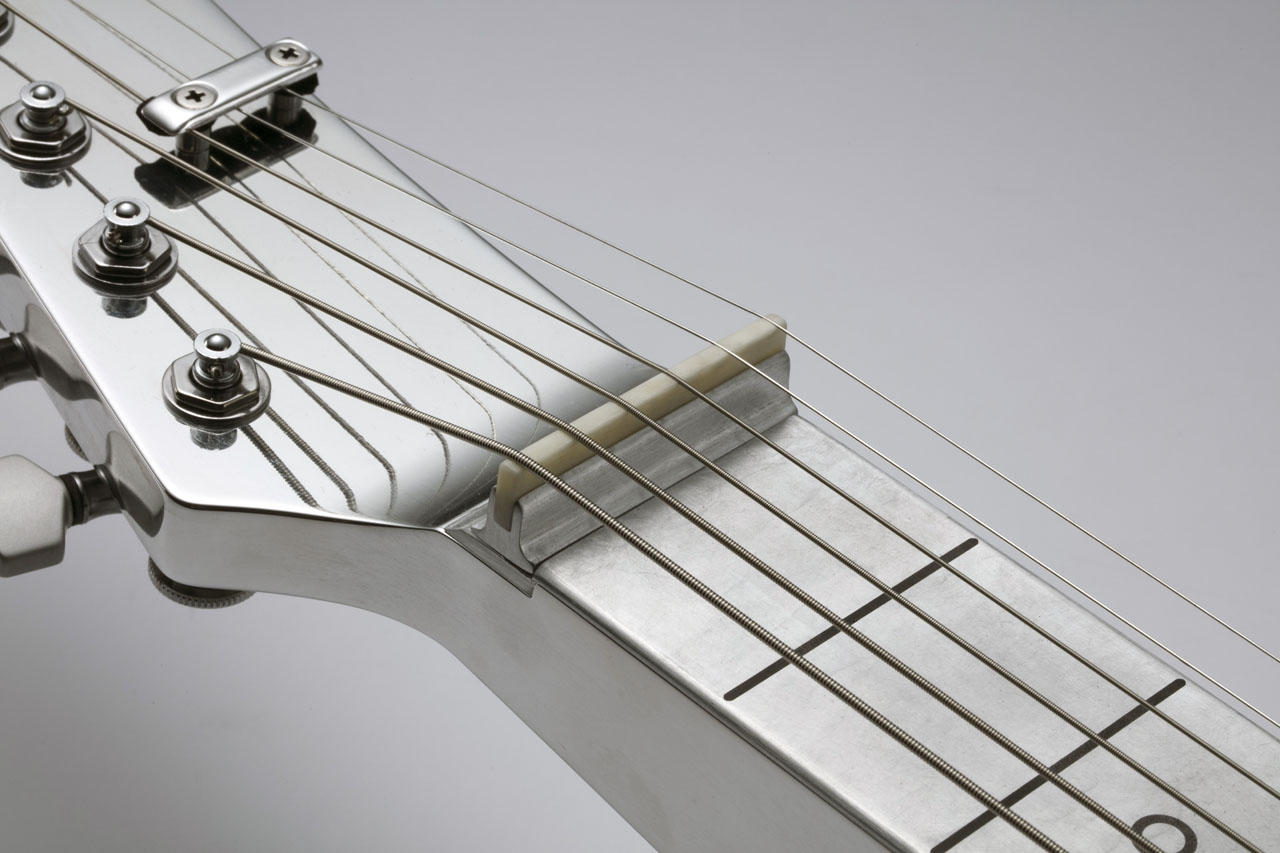

Nut
NOAH Lap Steel Nut - String spacing: 1”
¾ (44,45 mm)

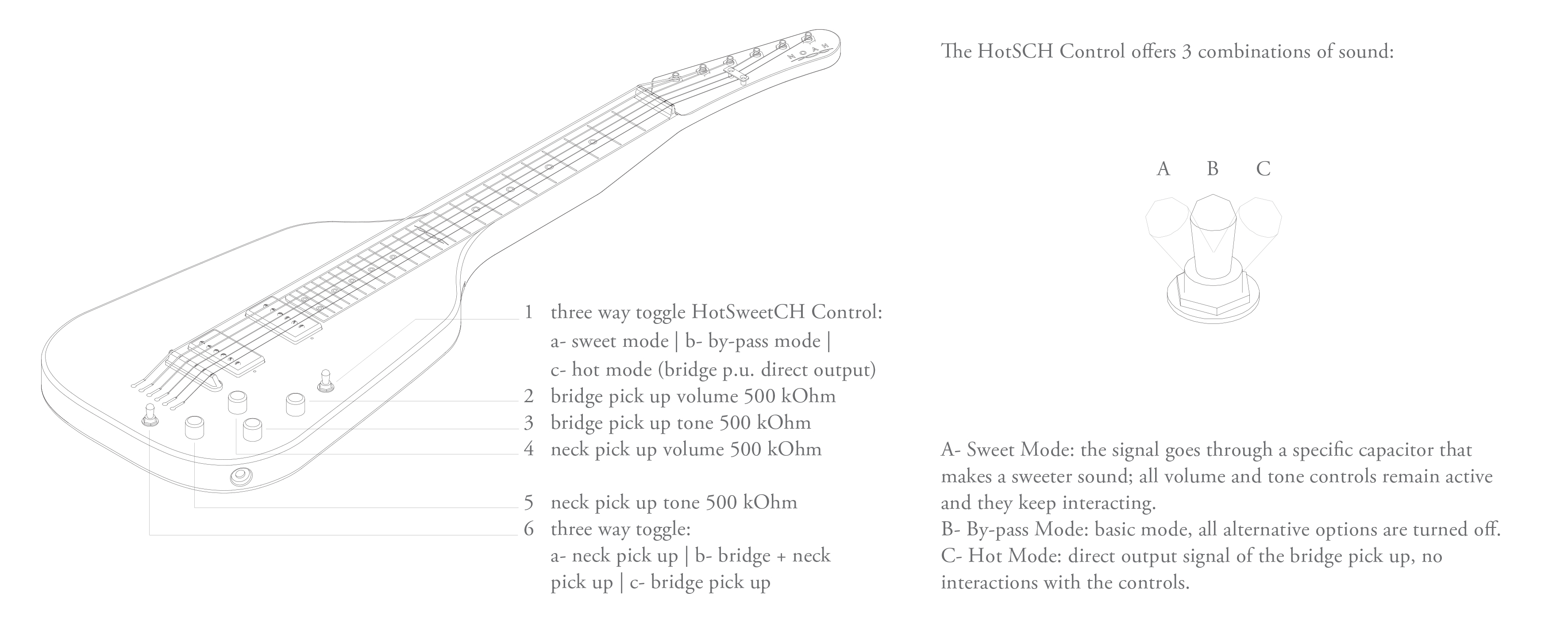

Controls
NOAH Mastergrip Knobs and
Di Marzio 3 way toggle switch
Scale & Frets
25" – 24 Frets - Fretless

HotSweetCH selector
Di Marzio 3 way toggle
switch for extra pick up voicing
Tuners
Sperzel locking staggered

Bridge
NOAH Lap Steel Bridge - String spacing: 2”
1/8 (54 mm)
Strings
John Pearse nickel 16/54 set, Open D
tuning

Body
Aluminium - Hollow – Depth 40 mm

Finish
NOAH Magic Mirror

Pickups
Seymour Duncan Phat Cat - P90
humbucker size - Nickel Cover Neck - 7,98K
Di Marzio DP223 F-Spaced humbucker
Alnico 5, PAF 36th Anniversary - Nickel Cover
Bridge – 8,6K

Controls
NOAH Mastergrip Knobs and
Di Marzio 3 way toggle switch

HotSweetCH selector
Di Marzio 3 way toggle
switch for extra pick up voicing

Bridge
NOAH Lap Steel Bridge - String spacing: 2”
1/8 (54 mm)

Neck
Aluminium - Hollow – Depth 40 mm

Fretboard
Aluminium – satin finish – Flat radius

Nut
NOAH Lap Steel Nut - String spacing: 1”
¾ (44,45 mm)

Scale
25" – 24 Frets - Fretless

Tuners
Sperzel locking staggered

Strings
John Pearse nickel 16/54 set, Open D
tuning

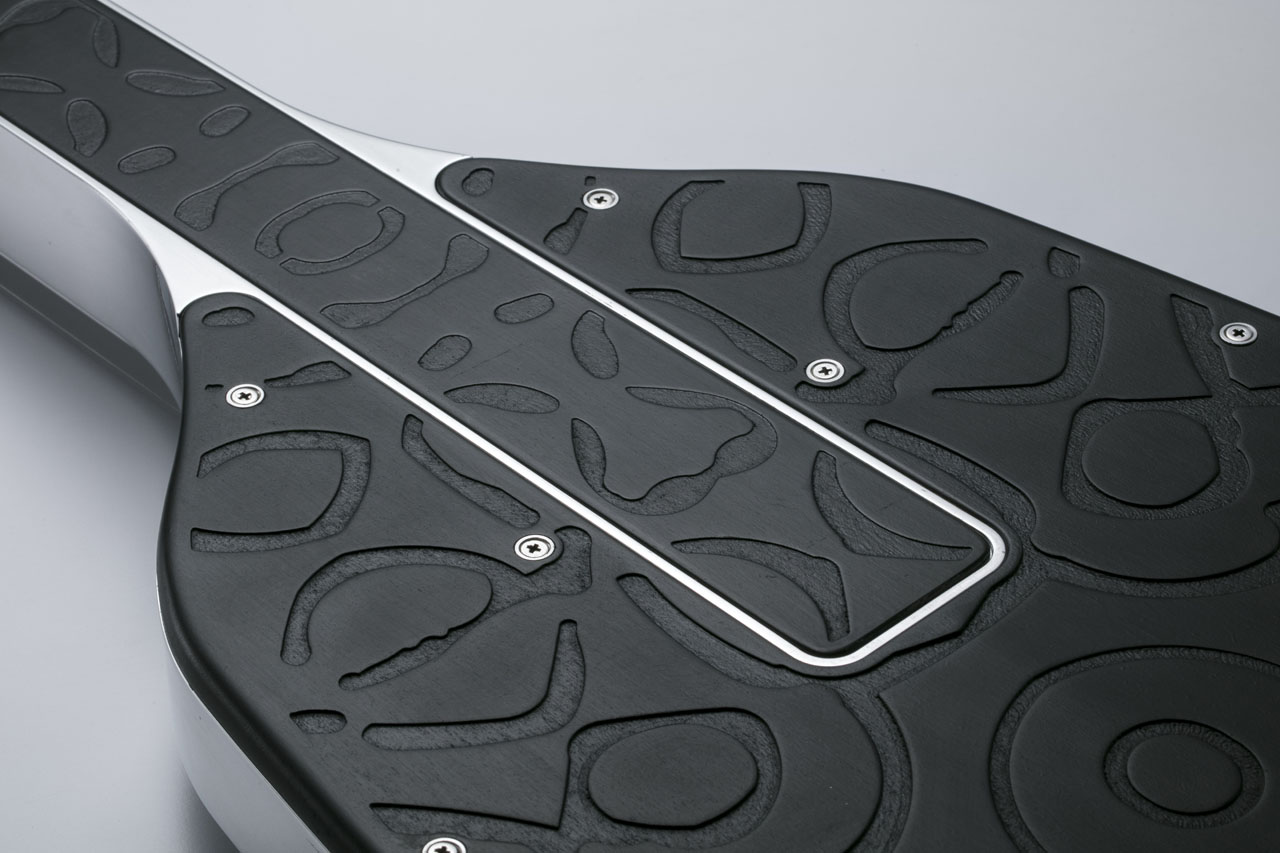

NOAH Lap Steel is a project inspired and dedicated to the internationally renowned musician Ben Harper. The first aluminum lap steel guitar was realized for him, with unique finishes and details: a special piece that, in every part tells the story of a journey and the people who took part in it. The use of different materials looks at the concept of balance between tradition and innovation, the contrast is emphasized in every detail: the aluminum front is clean and essential, the wood back cover is decorated and warm to the touch. In 2018, this guitar wins the Land Rover BORN Awards for the Technology Italy category and participates in the Global Final at the Design Museum of London.
